1. Upload & Parse
Accepts standard architectural files (PDF, DWG, DXF).
Automatically extracts walls, rooms, ceiling heights and structural elements—no Revit or BIM experience needed.
2. Project Specs Identification
Detects HVAC zones, fixture locations, electrical panels and user preferences.
Intuitive setup lets anyone on your team get started in minutes.
3. Routing Engine
Evaluates thousands of layout permutations in seconds.
Optimizes for shortest total path, minimal material use, proper system separation and onsite constructability.
4. Built-In Code Compliance
Applies rule libraries for Ontario Building Code, Canadian Plumbing Code, Canadian Electrical Code, ASHRAE HVAC standards, etc.
Ensures every drawing is permit-ready.

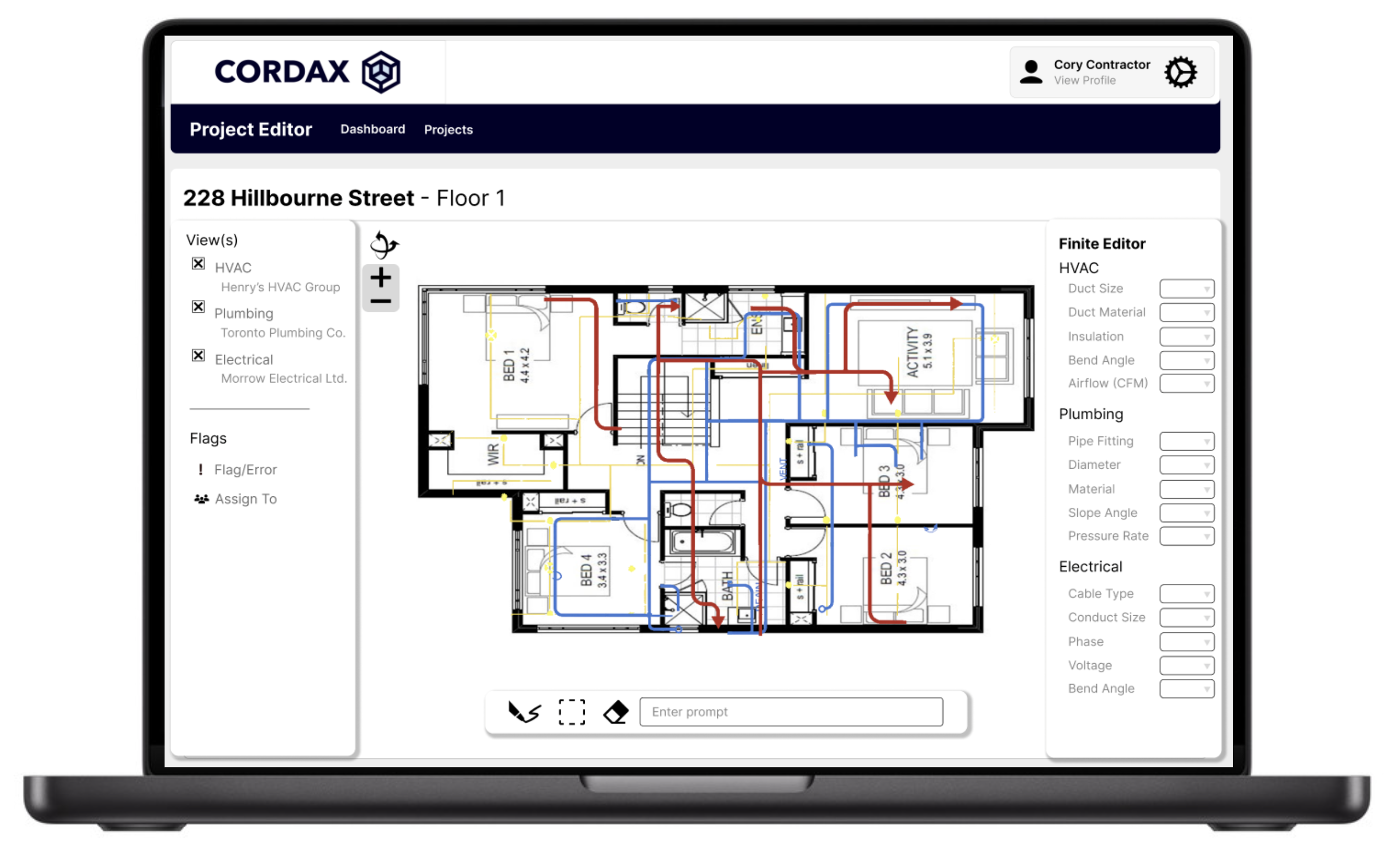

5. Instant Deliverables
2D plans with full annotations and callouts
BIM-compatible 3D exports (IFC) with real-world component metadata
Detailed material takeoffs and optional clash reports
6. Submit for Professional Engineer review.
CORDAX can optionally have your HVAC schematic reviewed and stamped by a professional engineer.
